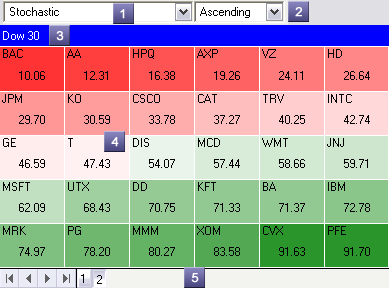

The block chart cell displays a selected box overlay for all symbols in a given set of symbol lists. Symbols are organized in sections by symbol list and may be kept sorted within the section by the selected sort order. Any number of customizable box overlays can be added to the chart. The parts of the cell are detailed below:
1 - Active Overlay - Selected box overlay to display. 2 - Sort Order - Sort order for the active box overlay. Symbols are sorted within their symbol section by the active overlay value or ticker. The Sort Every X Seconds setting must be checked for symbols to be sorted. 3 - Caption Row - Descriptive caption at the top of each symbol section. If the caption for a symbol section is empty, no caption row will appear. 4 - Symbol Rows - Box overlay for each symbol in the section. Multiple symbol sections will be stacked vertically. The boxes may increase from the preferred size in order to best fill the available space. 5 - Page Bar - Allows navigation and access to available pages for the chart. The first, previous, next, and last arrow buttons at the left of the page bar allow scrolling the page buttons area. Each chart page may specify a set of symbol sections. If there is only one chart page, the page bar is not displayed.
For further information on the chart cell, please consult the following topics:
|
|
